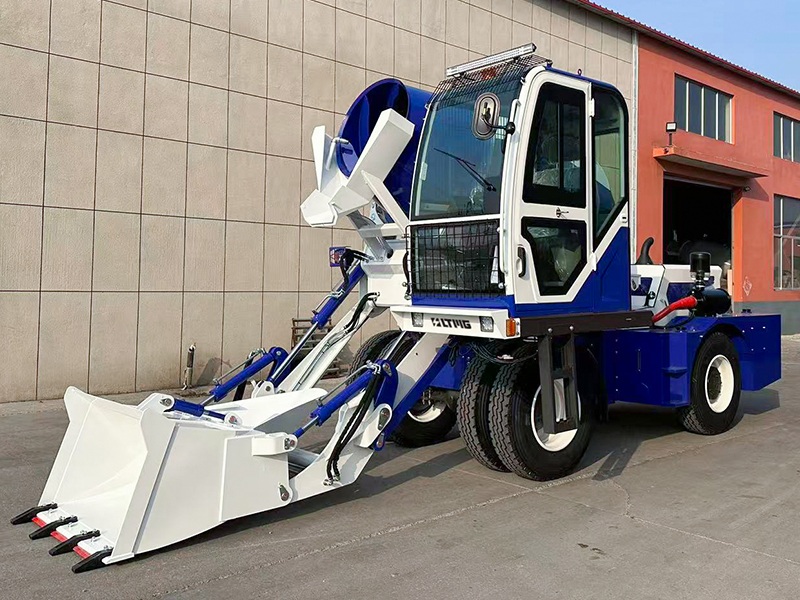

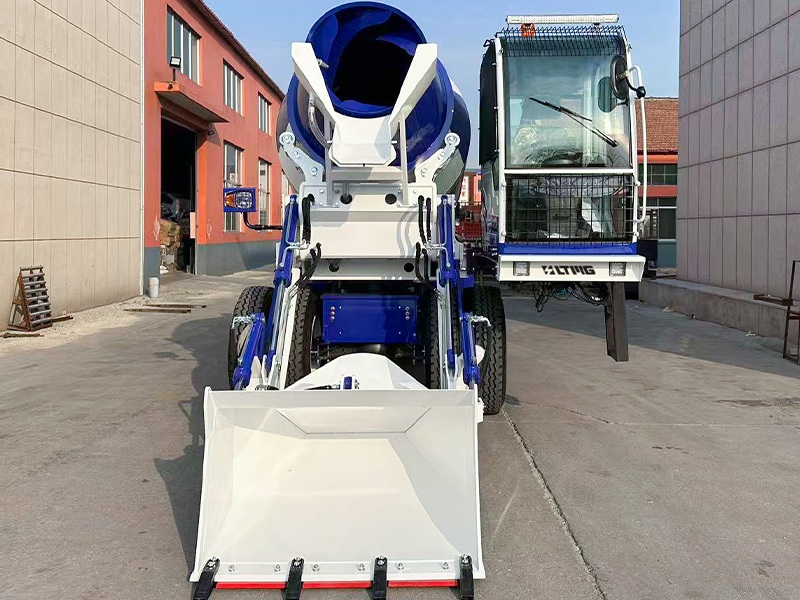

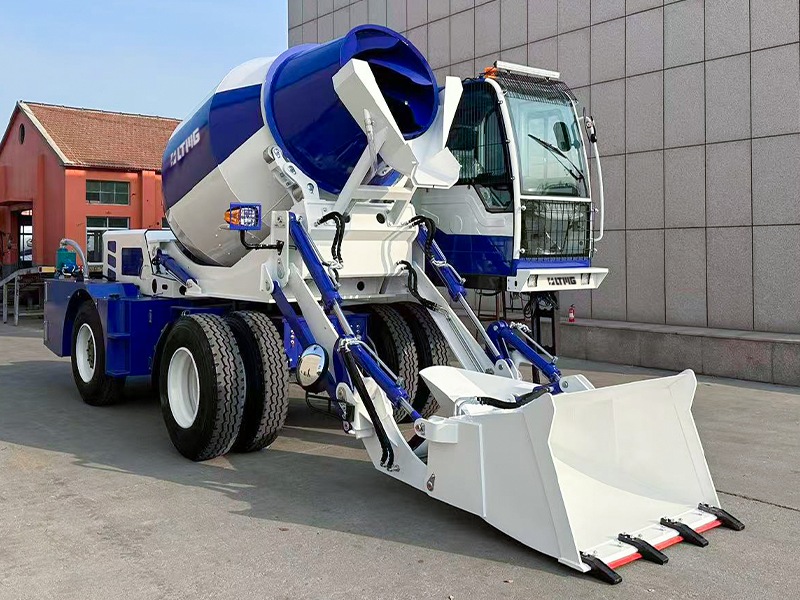

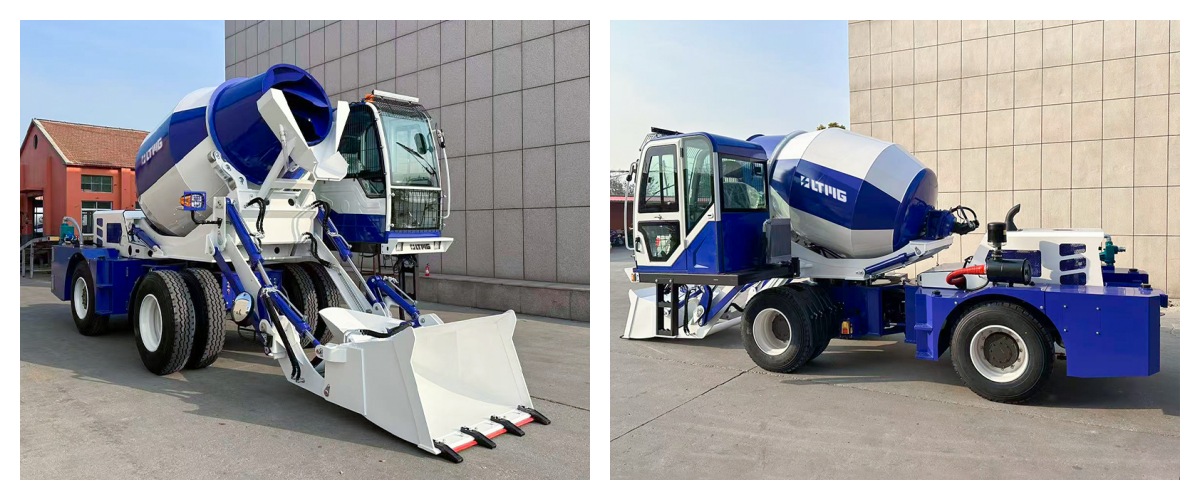

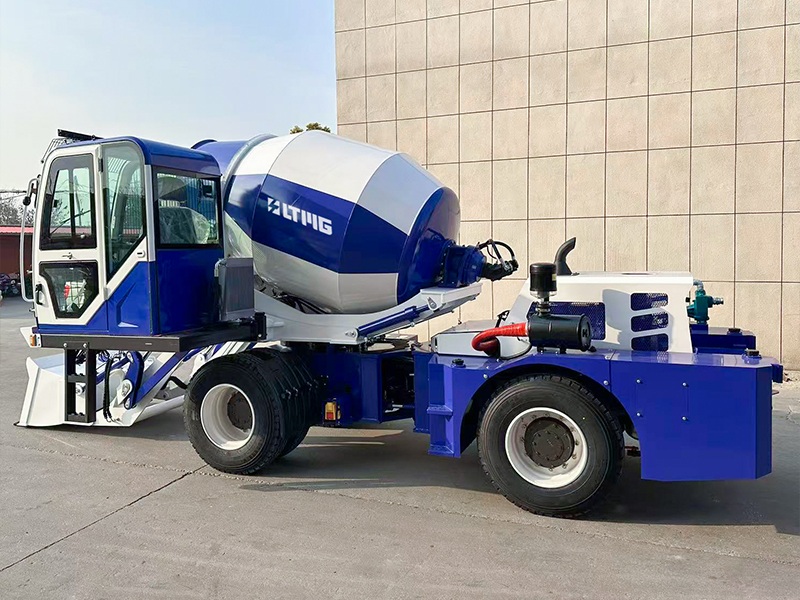

or contractors needing higher on-site concrete output, the LTM35C self-loading concrete mixer truck delivers 3.5 m³ per batch and up to 15.5 m³/h. Automatic feeding and metering, 270° operation, hydraulic steering, and 40° climbing capability support efficient work on roads, infrastructure, and remote construction sites.
Modèle :
LTM35CLester :
8100 KGODM/OEM :
AvailableOutput per Batch :
3.5
Self Concrete Mixer Features
1. Intelligent Design & Automated System: The leading automatic feeding and mixing system, combined with an electronic metering system, ensures precise automatic material weighing, mixing, and discharging, guaranteeing high efficiency and consistency while minimizing human error.
2. User-Friendly Operation & Ergonomic Design: Simple and intuitive operation, with an adjustable steering wheel that can be freely adjusted according to individual driving habits, enhancing comfort and flexibility during operation.
3. High Efficiency & Cost Savings: Efficient output saves time, labor, and costs. The design of the mixing tank and loader optimizes transportation and operational workflows, improving overall productivity.
4. 270-Degree Rotation & Perfect Integration: The mixing and discharging process can rotate 270 degrees, providing greater operational flexibility. The perfect integration of the mixing tank, loader, and transport truck forms a complete, high-efficiency solution for operations.
The Self Concrete Mixer Specification
| Parameter | Unit | LTM35C |
| Output per Batch | m³ | 3.5 |
| Batches per Hour | batch/h | Up to 4.5 |
| Hourly Output | m³/h | 15.5 |
| Overall Dimensions | mm | 7100 × 2750 × 3300 |
| Wheelbase | mm | 2903 |
| Wheel Track | mm | 2100 |
| Operating Weight | kg | 8100 |
| Engine | / | Yuchai Power YCD4J22T Foshan 16, diesel, water-cooled, 4-cylinder |
| Engine Speed | rpm | 2600 |
| Rated Power | kW | 85 |
| Steering Type | / | Hydraulic articulated steering |
| High Speed | km/h | 0-40 |
| Low Speed | km/h | 0-25 |
| Tire | / | 12R-22.5 steel wire high pressure vacuum tire |
| Bucket Capacity | m³ | 0.6 |
| Bucket Discharge | / | Hydraulic gate |
| Operation Control | / | Two hydraulic pilot joysticks control the scoop, upper arm, 270° turn, lift tank |
| Hydraulic System | / | Open type oil, plunger type motor; two gear pumps to participate in the work |
| Water Tank Capacity | L | 1 × 800 |
| Diesel Tank Capacity | L | 130 |
| Hydraulic Oil Tank Capacity | L | 130 |
| Power System Voltage | V | 24 |
| Climbing Capacity | ° | 40 |
| Turning Radius | mm | 2900 |
| Other | / | Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail
More about LTMG Machinery
FAQ
Q: What size aggregate can the machine handle?
A: The allowable size aggregate on the bucket, drum design, and concrete mix requirement. Oversized stones can reduce mixing quality and accelerate wear. The aggregate grading should follow the concrete mix design rather than depends simply using the largest material the bucket can load.
Q: Can a self-loading concrete mixer produce consistent concrete quality from batch to batch?
A: Yes, provided that the material proportions, water quantity, mixing time, and weighing system are properly controlled. For projects with stricter quality requirements, an electronic weighing and water-metering system is recommended to improve batch consistency.
Q: Can admixtures be added during mixing?
A: Yes. Liquid admixtures such as plasticizers or retarders can be added according to the approved concrete mix design. For accurate dosing, a separate measuring or dosing device is recommended instead of estimating the quantity manually.
Q: Can the concrete mixer truck produce high-strength concrete?
A: It can produce different concrete grades if the materials are accurately proportioned and properly mixed. However, high-strength or structural concrete usually requires stricter control of cement content, water-cement ratio, aggregate grading, and admixture dosage.
