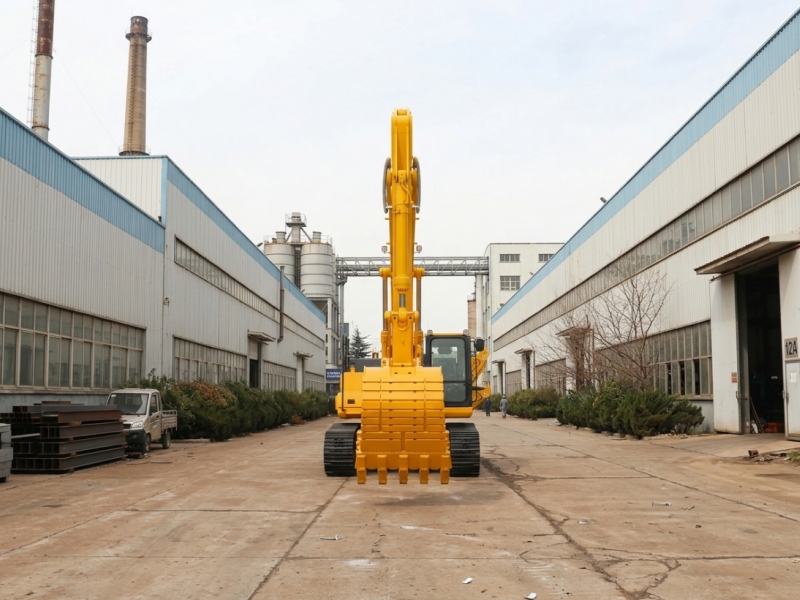

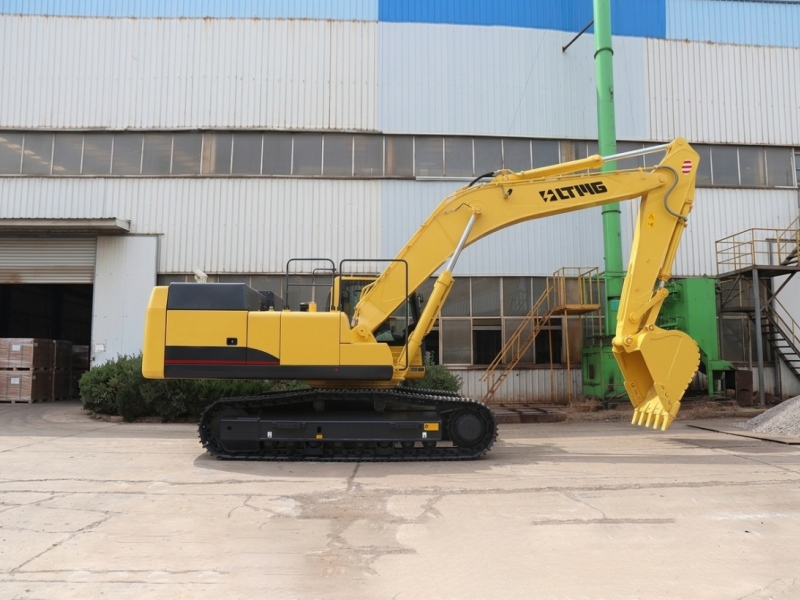

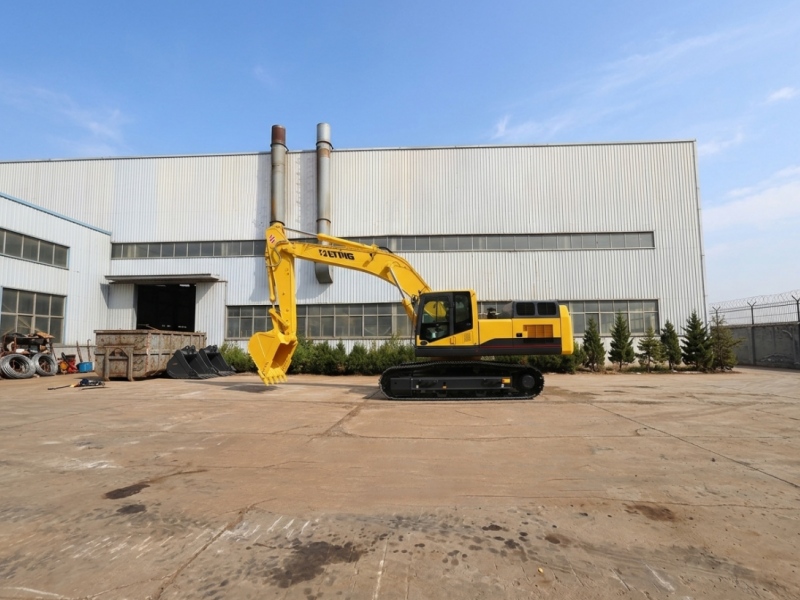

The LTE360 crawler excavator features a 36,000 kg operating weight and a 1.6m³ bucket capacity, delivering strong digging force, stable handling, and reliable performance for demanding job sites. With intelligent controls, efficient cooling technology, and easy maintenance design, the LTE360 is suitable for construction, mining, and heavy-duty earthmoving applications.
Modèle :
LTE360Poids opérationnel :
36000 kgCapacité du seau :
1.6m3
LTE360 Crawler Excavator Specifications
| model | LTE360 |
|
Total Weight(T) |
36 |
|
Bucket capacity(M³) |
1.6 |
|
Engine model |
Isuzu 6HK1XQP |
|
Rated power(Kw/r/min) |
190.5/2000 |
|
Max displacement(L/min) |
336*2 |
|
Working pressure(Mpa) |
37 |
|
Hydraulic pump mode |
K5V160DT |
|
Hydraulic tank volume(L) |
310 |
|
Walking speed (high/low)(km/h) |
5.2/4 |
|
Swing speed(r/min) |
8.2 |
|
Climbing ability(° ) |
70 |
|
Bucket excavation force(KN) |
185 |
|
Arm digging force(KN) |
245 |
|
Ground specific voltage(KPa) |
70.8 |
|
Traction force(KN) |
247.8 |
|
Maximum excavation height(mm) |
10200 |
|
Maximum unloading heigh(mm) |
7135 |
|
Maximum excavation depth (mm) |
7370 |
|
Maximum vertical arm mining depth(mm) |
6380 |
|
The distance when digging 2.5 horizontal plane(mm): |
7190 |
|
Maximum excavation distance(mm) |
11100 |
|
Maximum excavation distance on the ground (mm) |
10910 |
|
Minimum turning radius (mm) |
4265 |
|
Maximum height at minimum turning radius(mm) |
8500 |
|
Distance from the center of rotation to the rear end(mm) |
3525 |
|
Counterweight height (mm) |
2627 |
|
Grounding length (during transportation) (mm) |
5875 |
|
Total length(mm) |
11184 |
|
Overall width(mm) |
3190 |
|
Total heigh(boom top)(mm) |
3180 |
|
Overall height(top of cab)(mm) |
3165 |
|
counterweight ground clearance(mm) |
1190 |
|
Minimum ground clearanc(mm) |
498 |
|
Minimum ground clearanc(mm) |
3525 |
|
Track grounding length(mm) |
4030 |
|
Track length (mm) |
4945 |
|
Rail guage (mm) |
2590 |
|
Track width (mm) |
3190 |
|
Track shoe width (mm) |
600 |
|
Turntable width (mm) |
2995 |
|
Rack tooth thickness(mm) |
30 |
|
Arm length(mm) |
3185 |
|
Boom length(mm) |
6470 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

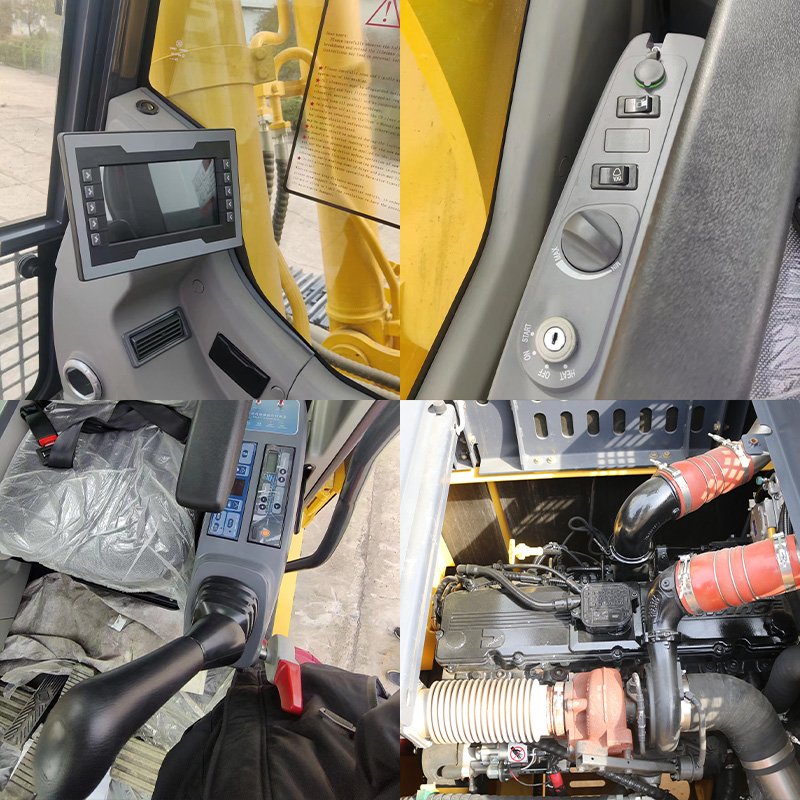

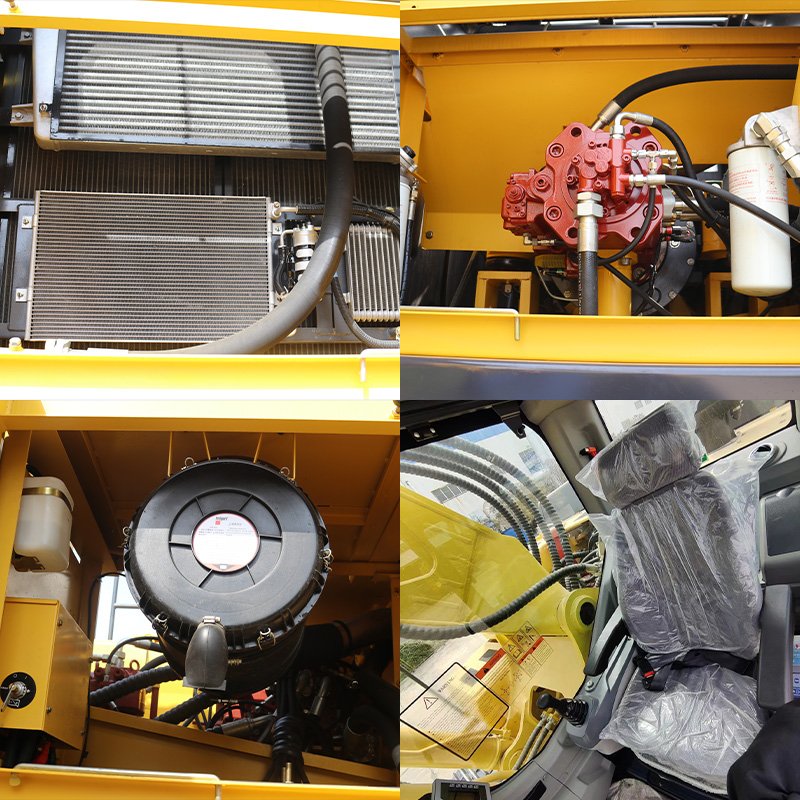

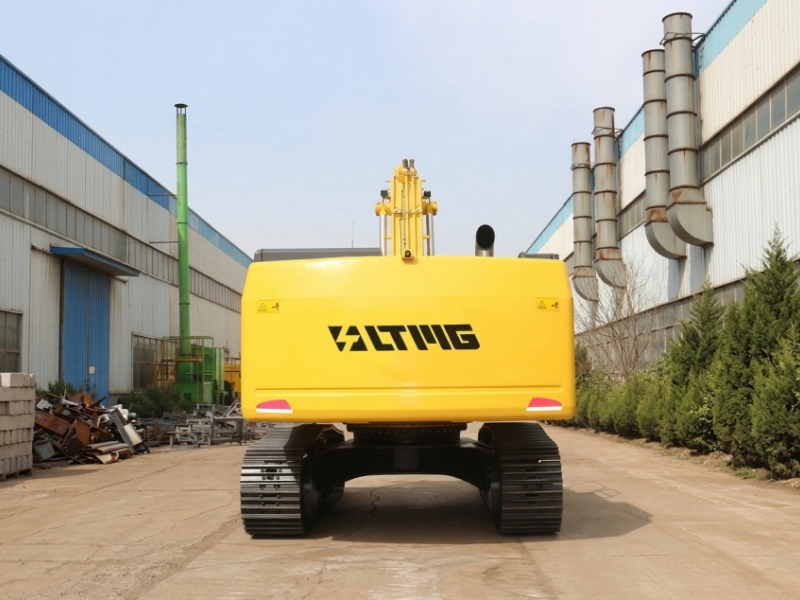

LET360 Crawler Excavator Details
About LTMG
FAQs
How much is excavator machine?
Excavator machine prices vary depending on size, configuration, and application requirements. Heavy-duty crawler excavators usually cost more due to their larger operating capacity and stronger performance. LTMG provides high-quality excavators with competitive pricing and professional support based on your project needs.
What applications is the LTE360 crawler excavator suitable for?
The LTE360 crawler excavator is suitable for construction, mining, quarry, earthmoving, and other heavy-duty working environments.
