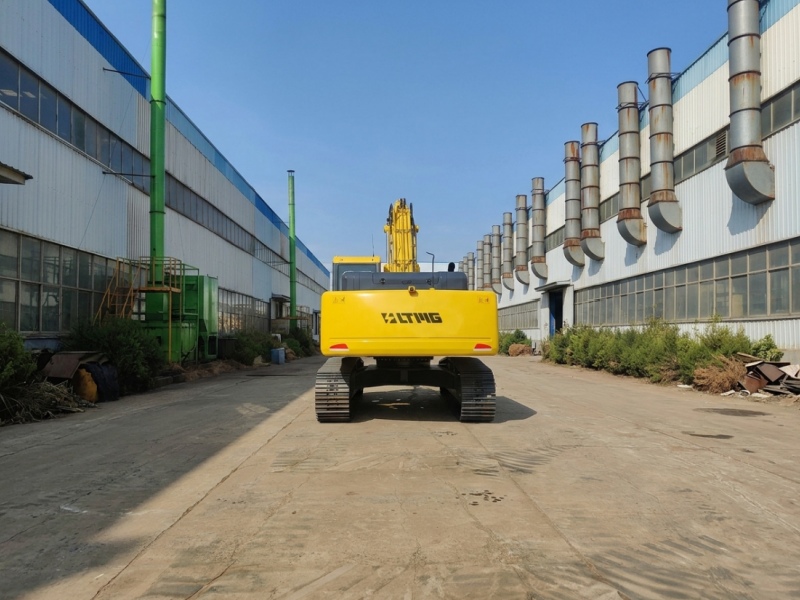

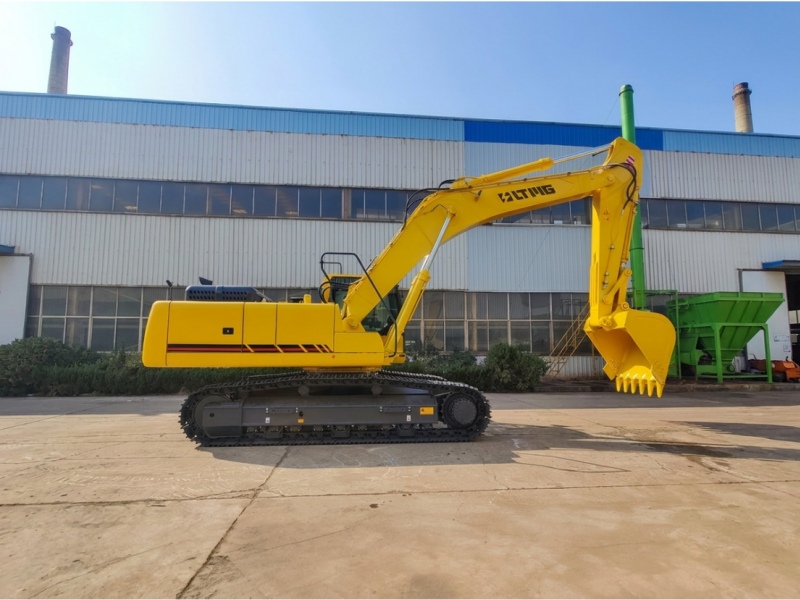

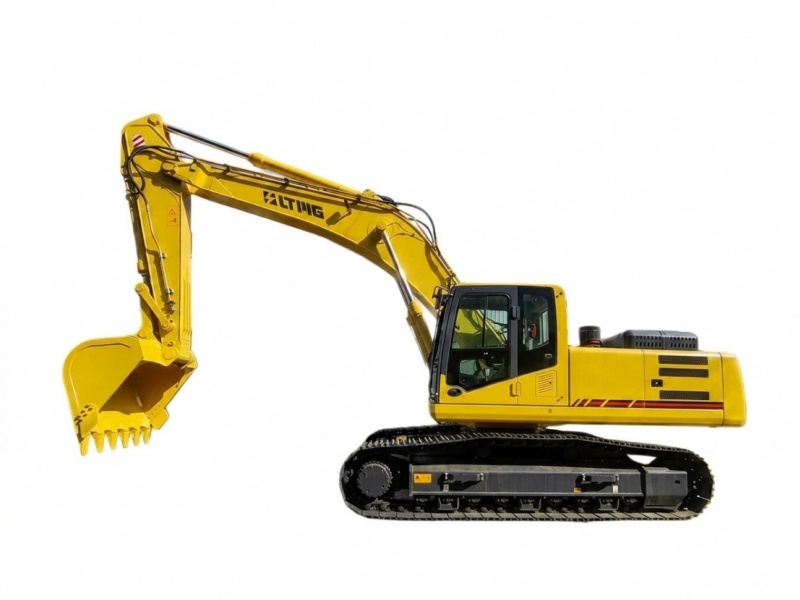

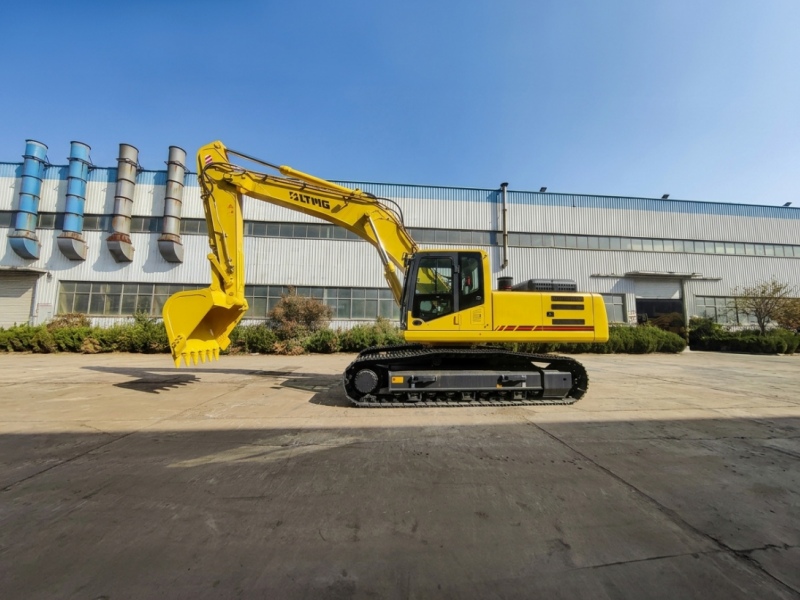

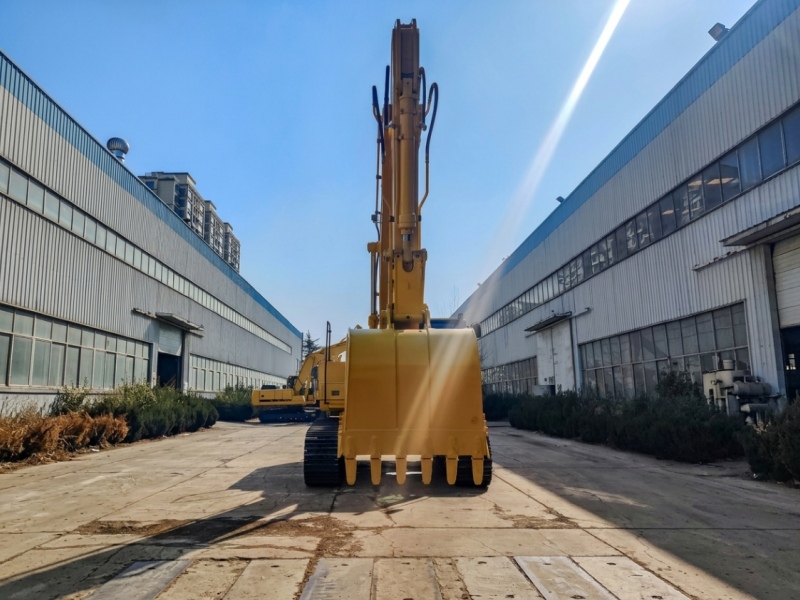

The LTE300 crawler excavator features a 30,000 kg operating weight and a 1.4m³ bucket capacity, delivering strong digging performance and stable operation in demanding working conditions. With efficient cooling, intelligent controls, and easy maintenance, it is ideal for construction, mining, and heavy-duty material handling applications.
Modèle :
LTE300Poids opérationnel :
30000 kgCapacité du seau :
1.4m3
LTE300 Crawler Excavator Specifications
| Model | LTE300 |
|
Total Weight(T) |
30 |
|
Bucket capacity(M³) |
1.4 |
|
Engine model |
Dongfeng Cummins CTAA8.3-260 |
|
Rated power(Kw/r/min) |
194/200 |
|
Max displacement(L/min) |
265*2+30 |
|
Working pressure(Mpa) |
34.3 |
|
Hydraulic pump mode |
K5V160DT |
|
Hydraulic tank volume(L) |
310 |
|
Walking speed (high/low)(km/h) |
4.6/2.8 |
|
Swing speed(r/min) |
9.4 |
|
Climbing ability(° ) |
35 |
|
Bucket excavation force(KN) |
145 |
|
Arm digging force(KN) |
179 |
|
Ground specific voltage(KPa) |
65.1 |
|
Traction force(KN) |
283 |
|
Maximum excavation height(mm) |
10010 |
|
Maximum unloading heigh(mm) |
6974 |
|
Maximum excavation depth (mm) |
7002 |
|
Maximum vertical arm mining depth(mm) |
5960 |
|
The distance when digging 2.5 horizontal plane(mm): |
6820 |
|
Maximum excavation distance(mm) |
10737 |
|
Maximum excavation distance on the ground (mm) |
10540 |
|
Minimum turning radius (mm) |
4282 |
|
Maximum height at minimum turning radius(mm) |
8387 |
|
Distance from the center of rotation to the rear end(mm) |
3418 |
|
Counterweight height (mm) |
2210 |
|
Grounding length (during transportation) (mm) |
5678 |
|
Total length(mm) |
10881 |
|
Overall width(mm) |
3190 |
|
Total heigh(boom top)(mm) |
3314 |
|
Overall height(top of cab)(mm) |
3280 |
|
counterweight ground clearance(mm) |
1210 |
|
Minimum ground clearanc(mm) |
523 |
|
Tail turning radius(mm) |
3418 |
|
Track grounding length(mm) |
4030 |
|
Track length (mm) |
4622 |
|
Rail guage (mm) |
2590 |
|
Track width (mm) |
3190 |
|
Track shoe width (mm) |
600 |
|
Turntable width (mm) |
2995 |
|
Arm length(mm) |
3050 |
|
Boom length(mm) |
6250 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
About LTMG
FAQs
What is a crawler excavator?
A crawler excavator is an excavator machine that moves on tracks instead of wheels. It offers better stability, traction, and performance on rough or muddy terrain, making it ideal for heavy-duty construction work.
How to operate an excavator machine?
To operate an excavator machine, inspect the equipment first, then use the joysticks and pedals to control the boom, bucket, and tracks. Proper training is recommended for safe and efficient operation.
