This telescopic loader has a high-horsepower engine and a high-strength telescopic arm, which can efficiently handle heavy-duty operations. It can quickly switch attachments to meet the needs of multiple scenarios, and the enhanced drive system ensures stable all-terrain traffic. The hydraulic control is sensitive, the operation is comfortable and easy to use; the key components are durable, maintenance is convenient, and cost reduction and efficiency improvement are achieved.
Modèle :
LT985TCapacité de chargement :
850KGPoids opérationnel :
1860KGCapacité du seau :
0.35m³ODM/OEM :

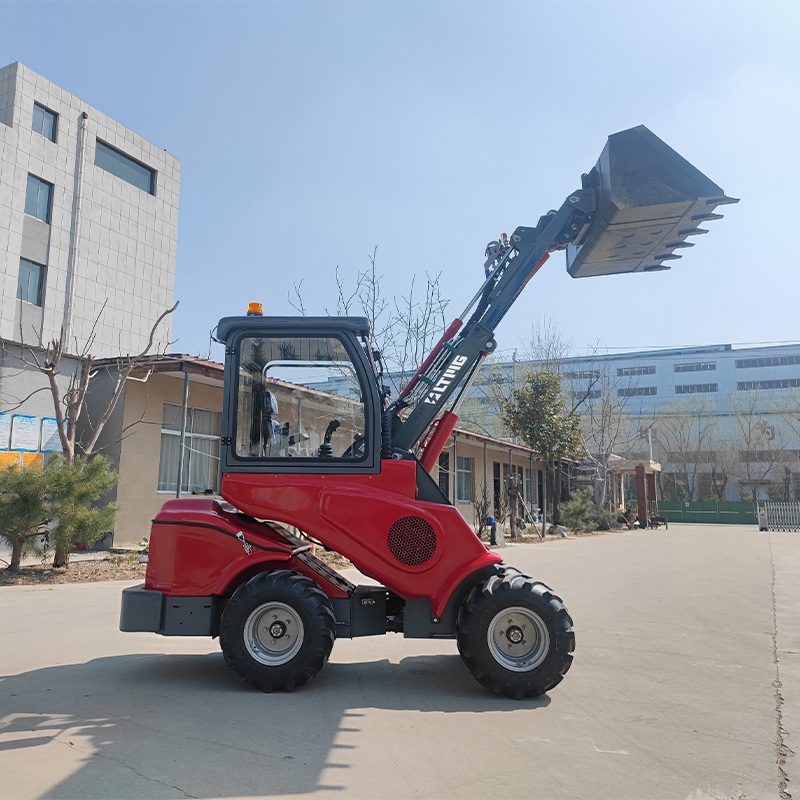

SupportLT985T 850kg Mini Telescopic Wheel Loader
Specification of 850kg Mini Telescopic Wheel Loader
Model |
LT985T |
Overall dimensions |
2600mm*1240mm*2230mm |
Maximum lift height with arm extended |
3000mm |
Maximum lift height with arm retracted |
2480mm |
Minimum turning radius |
2480mm |
Minimum turning angle |
45º |
Bucket capacity |
0.35CBM |
Rated load |
850kg |
Maximum lift height to pin |
3000mm |
Maximum travel speed |
12km/H |
Transmission |
4*4 |
Overall weight |
1860kg |
Standard tires |
26X12-12 |
Tire pressure |
2.8Bar |
Hydraulic tank capacity |
40L |
System pressure |
190bar |
Operational flow rate |
67L/min (Twin Pumps) |
Traveling flow rate |
78L/min |
Hydraulic oil type (mineral oil) |
L-HL46 |
Fuel tank capacity |
23L |
Battery capacity |
60Ah |
Battery voltage |
12V |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
